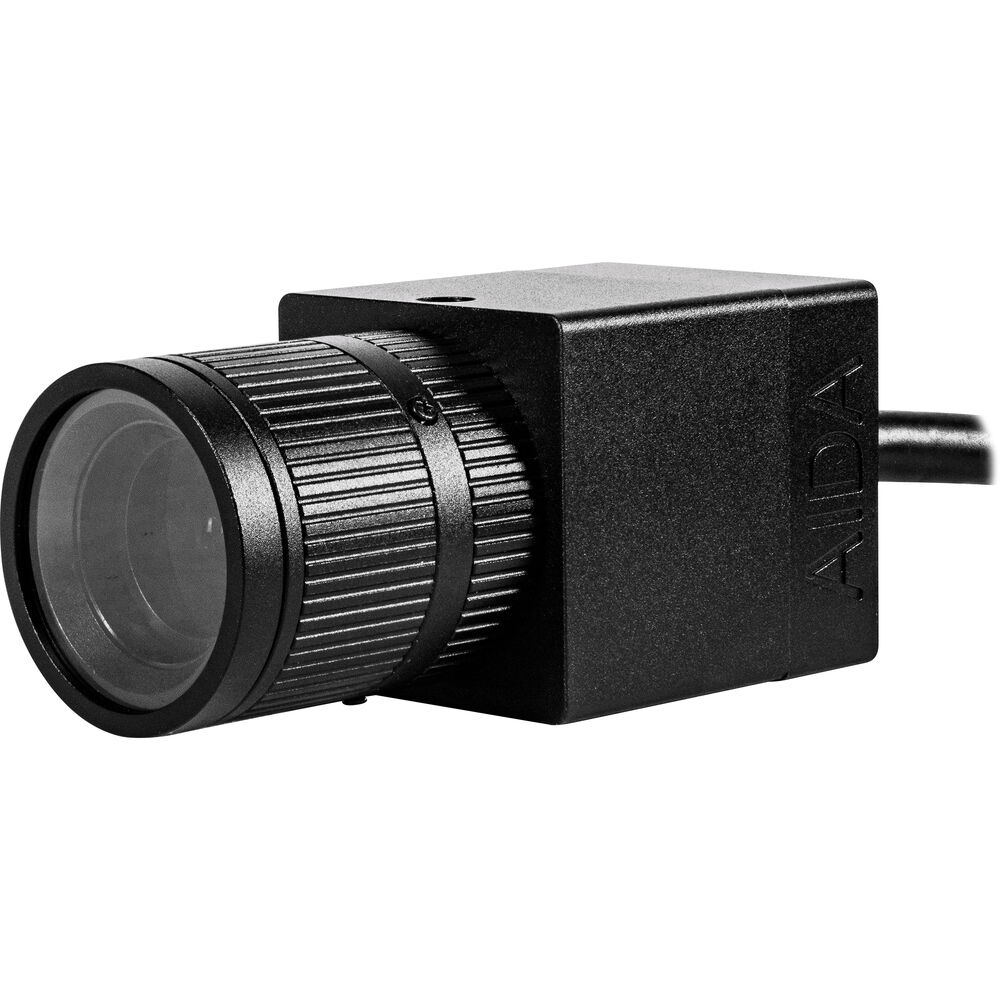

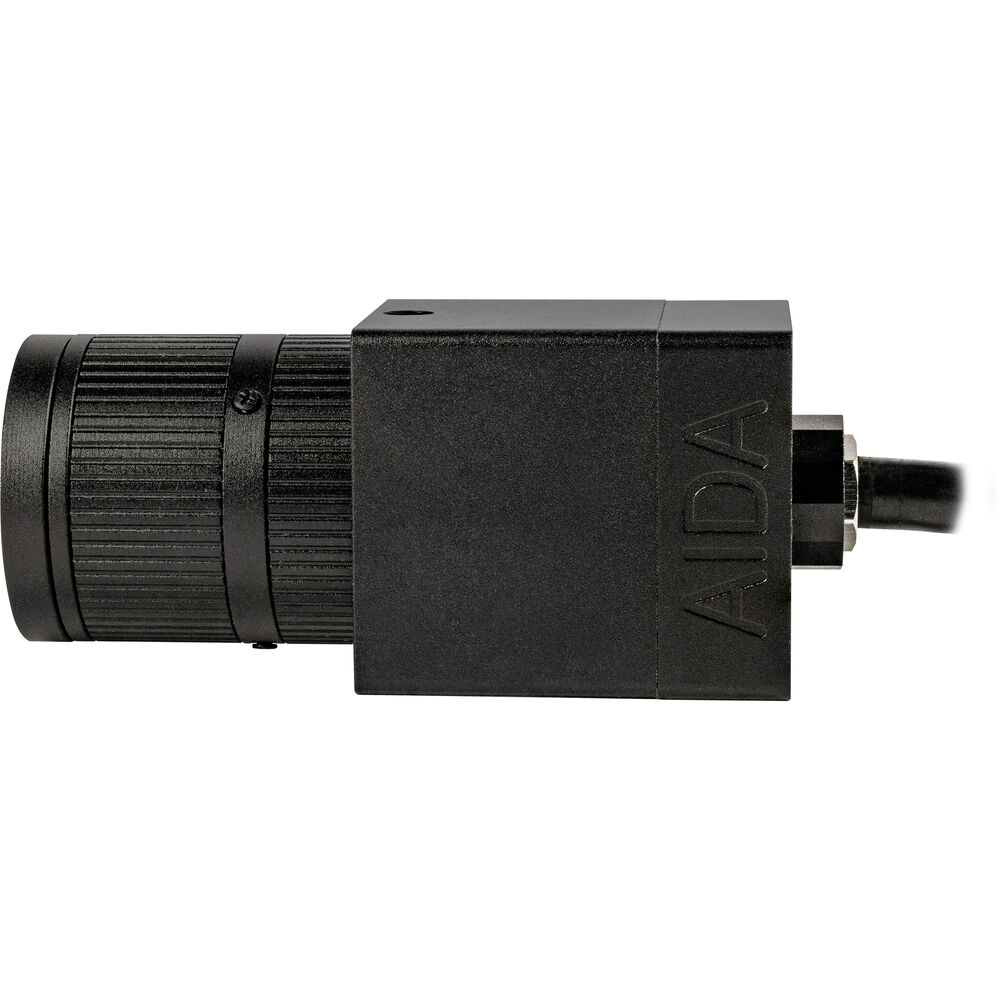

The AIDA Imaging HD-100A-VF is a versatile Full HD HDMI point-of-view (POV) camera engineered to deliver sharp, low-latency video for live broadcast, sports, web-conferencing, and multi-camera production setups. Built around a 1/3″ Progressive CMOS sensor, it captures crisp 10-bit uncompressed video at resolutions up to 1080p60 over a standard HDMI 1.3a output. What sets the HD-100A-VF apart is its pre-installed 2.8mm to 12mm manual varifocal lens, giving operators complete flexibility to adjust framing anywhere from an 80° wide-angle view down to a 32° zoomed-in shot without needing to swap lenses or compromise image fidelity.

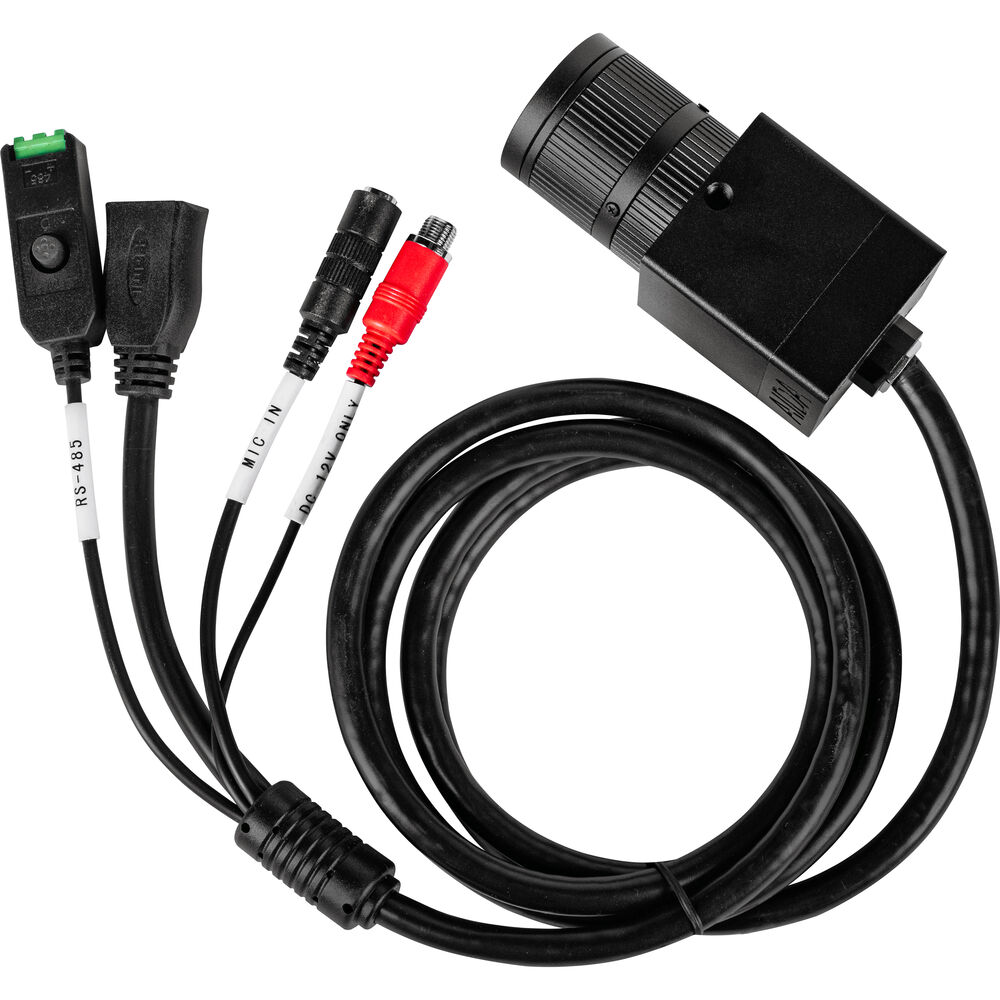

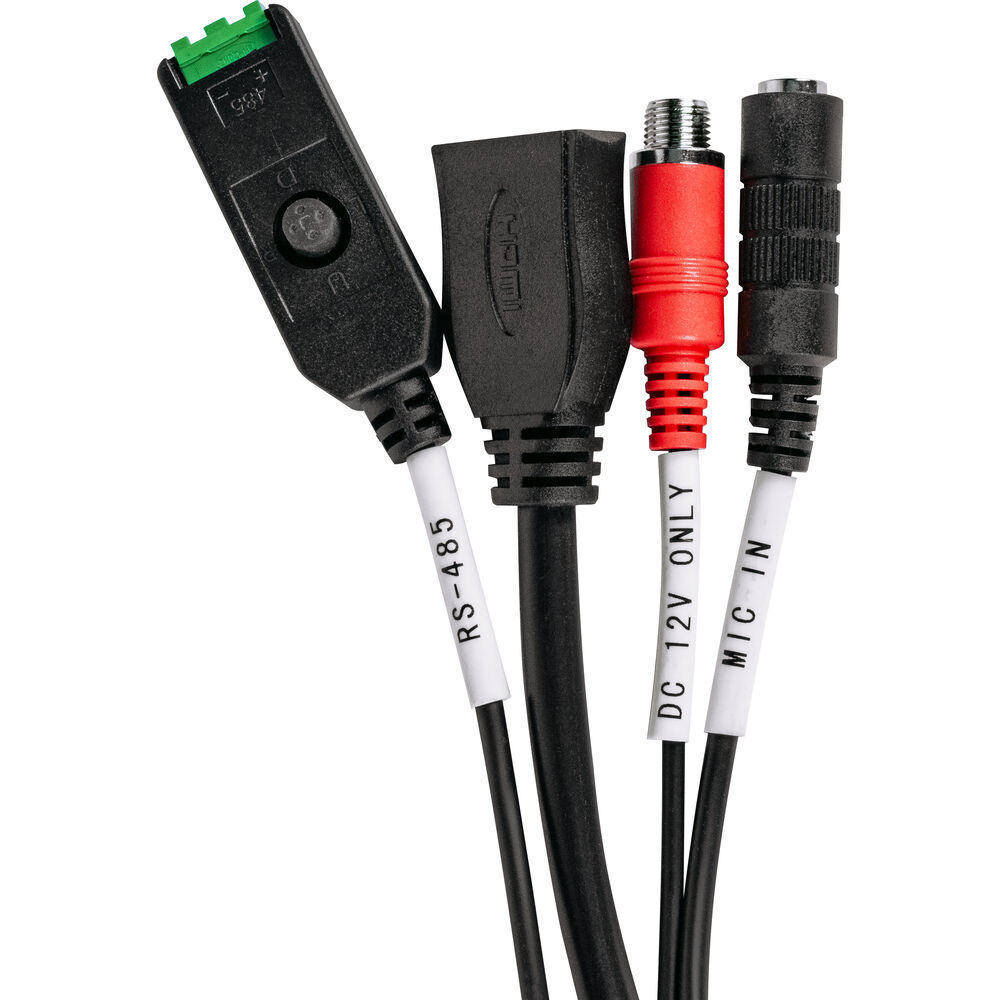

Housed in a rugged, ultracompact body, the camera features an IP54-rated weatherproof shell and a 3-foot weather-sealed breakout cable designed to protect sensitive connections from dust, moisture, and light splashes. It includes a 3.5mm TRS stereo audio input for seamless audio embedding over HDMI, as well as RS-485 Serial VISCA control and on-screen display (OSD) navigation for easy remote adjustments. Dual 1/4″-20 threaded mounts on the top and bottom allow for effortless mounting on standard tripods, rigs, or tight spatial installations where traditional cameras won’t fit.
Key Features
- Custom IP54 rated Varifocal lens providing a FOV of 120° wide, and 36° tele to help get that perfect shot.
- Small form-factor and rugged design allows for versatile placement in many video streaming applications.
- Weatherproof IP54 rating allows for extra protection against environmental elements.
- 1 meter /3-foot cable places power, output, and control connections far away from the camera
- Full HD 1/3″ progressive scan CMOS sensor capable of 1080p60 video.
- Versatile design with top and bottom tripod mounts for unique shot creation.
- Serial VISCA and OSD control
Specifications
Video
- Image Sensor: 1/3” Progressive CMOS
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution/Framerate: 1080 60p/59.94/50p/30p/29.97p/25p/24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
- Output: HDMI 1.3a
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 – 11,000 K)
Lens
- 2.8mm ~ 12mm Custom Lens; FOV Wide: 120° Tele’d: 36°
Audio
- Input: 3.5mm TRS Stereo
- Sample Rate: 16/24/32 Bits
Physical
- Camera Control Protocol: Serial VISCA, OSD Button
- Operation Temp: 32°F – 104°F
- Cable length: 1 meter / 3 feet
- Dimensions: 73mm x 41mm x 41mm / 2.86” x 1.61” x 1.61” (With added lens)
- Weight: 454g / 1 lb (with default WP cap)
- Power: 12VDC (+9 – +15VDC)
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 10 × 7 × 3 in |
