Science Image High Bandwidth NDI Converters & Fiber Solutions

Take control of NDI

NDI has grown to become one of the most popular and ubiquitous IP-based video formats in the world. Getting video into and out of NDI shouldn't be difficult or expensive.

The Studio Series from Science Image packs an impressive amount of functionality into user-friendly NDI converters that can handle encoding, decoding, and format conversion with ease.

Ready for anything

4K conversion with a plethora useful of features

All Studio Series products share a common feature set, engineered to address a wide range of video workflows.

  • NDI 6 encoding and decoding
  • Up/Down/Cross conversion with hundreds of possible format combinations
  • Up to 4Kp60 resolution and framerate support
  • 12G-SDI input and output
  • HDMI 2.0 input and output
  • Bright dual-color tally light
  • 1.3-inch OLED display with settings menu and status
  • Scroll wheel for easy menu navigation
  • 3.5mm microphone/headphone combo port for intercom
  • SFP+ optical fiber port
  • RJ-45 Gigabit Ethernet port (with POE support on Studio 2)

Portable or Rack-mounted

Science Image has options for every situation

The Studio Series includes both portable and rack-mountable converters, featuring the same amazing features and intuitive design.

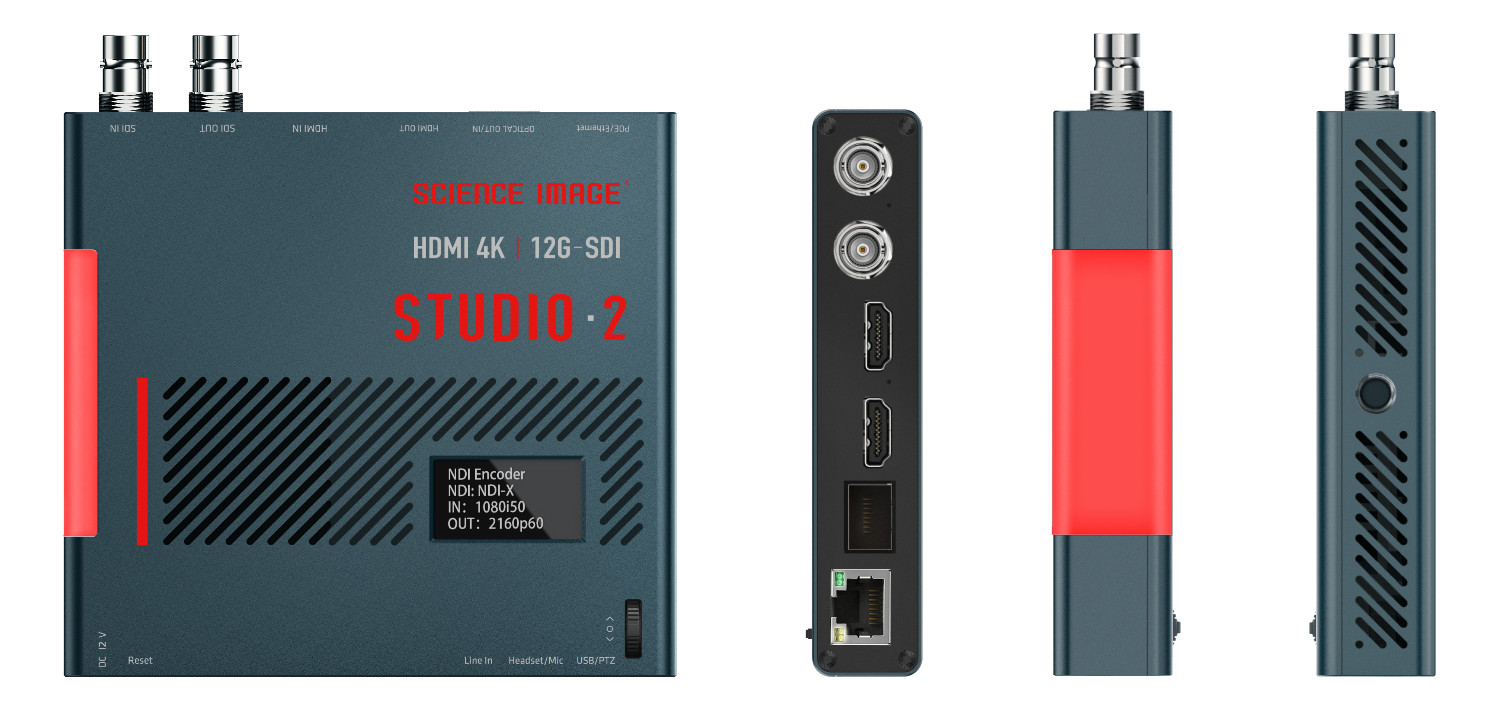

Studio 2

Studio 2 is a High-Bandwidth NDI converter and up/down/cross converter that can fit in one hand. It's equally suited for on-camera as it is on a desktop or mounted behind a 4K screen.

Studio also has a few unique features, including:

  • DCI 2K and 4K cinema video format support

  • USB port for remote control of PTZ cameras

  • Powered by POE or external power adapter

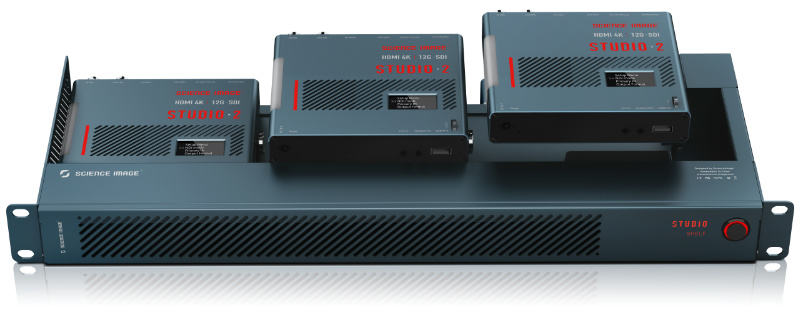

  • Compatibility with optional Studio Shelf - Install up to three Studio 2 devices (or other Science Image standalone converters) into a single rack space shelf

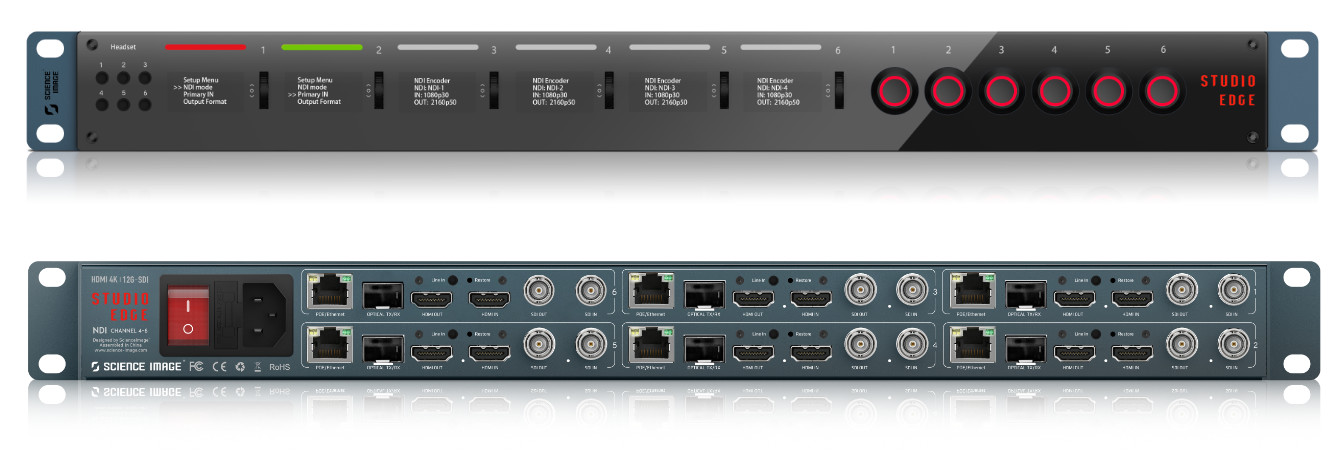

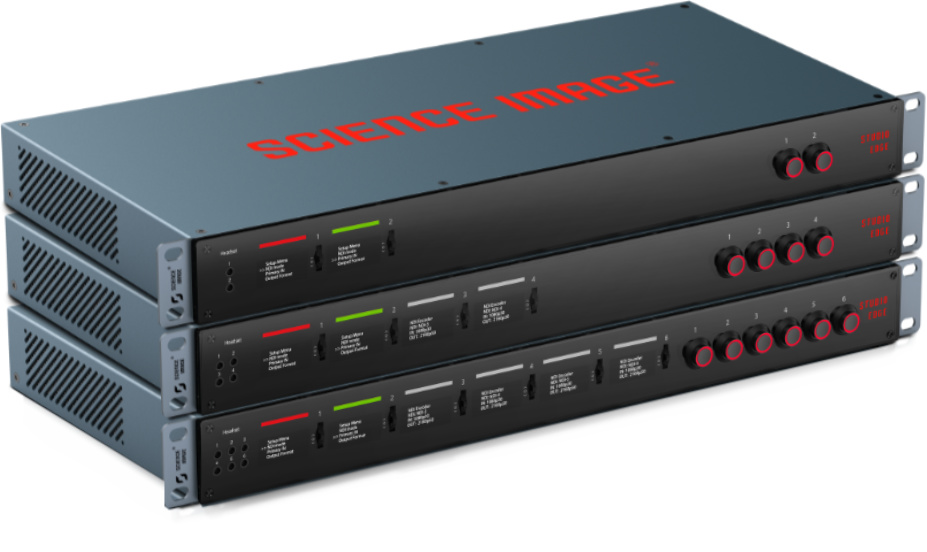

Studio Edge

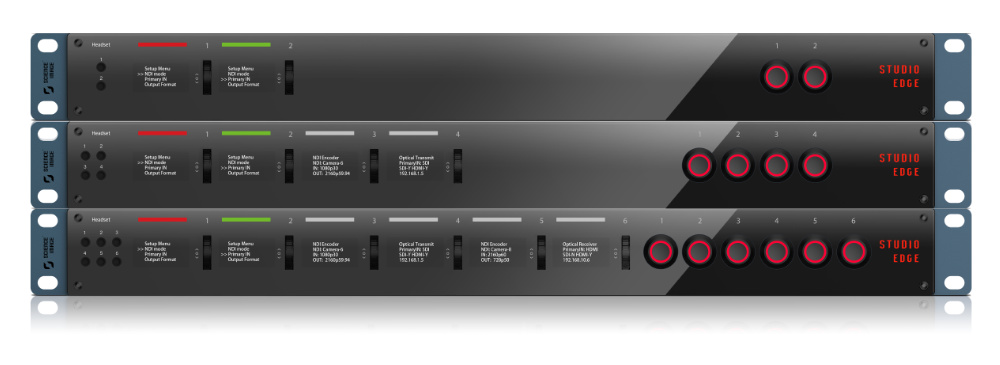

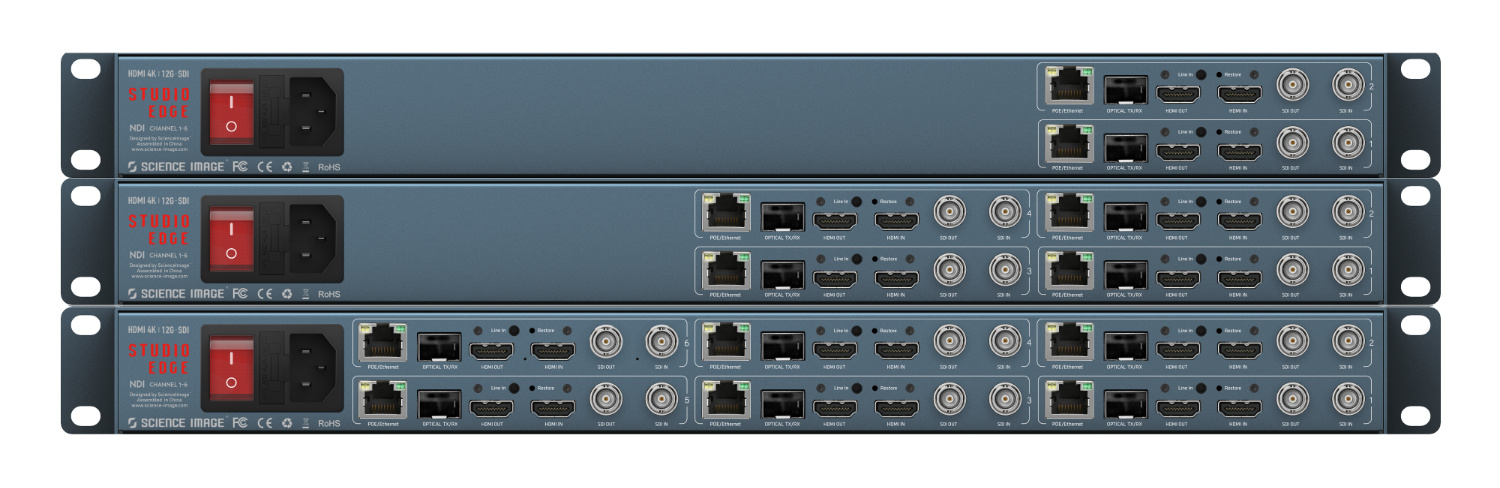

Studio Edge takes all the great features of the Studio 2 and builds them into a 1U rack. It's available in 2-channel, 4-channel, and 6-channel configurations.

Each channel of the Studio Edge has its own independent power switch, so you only need to power up the active channels.

Cooling is managed intelligently based on the number of active converter channels.

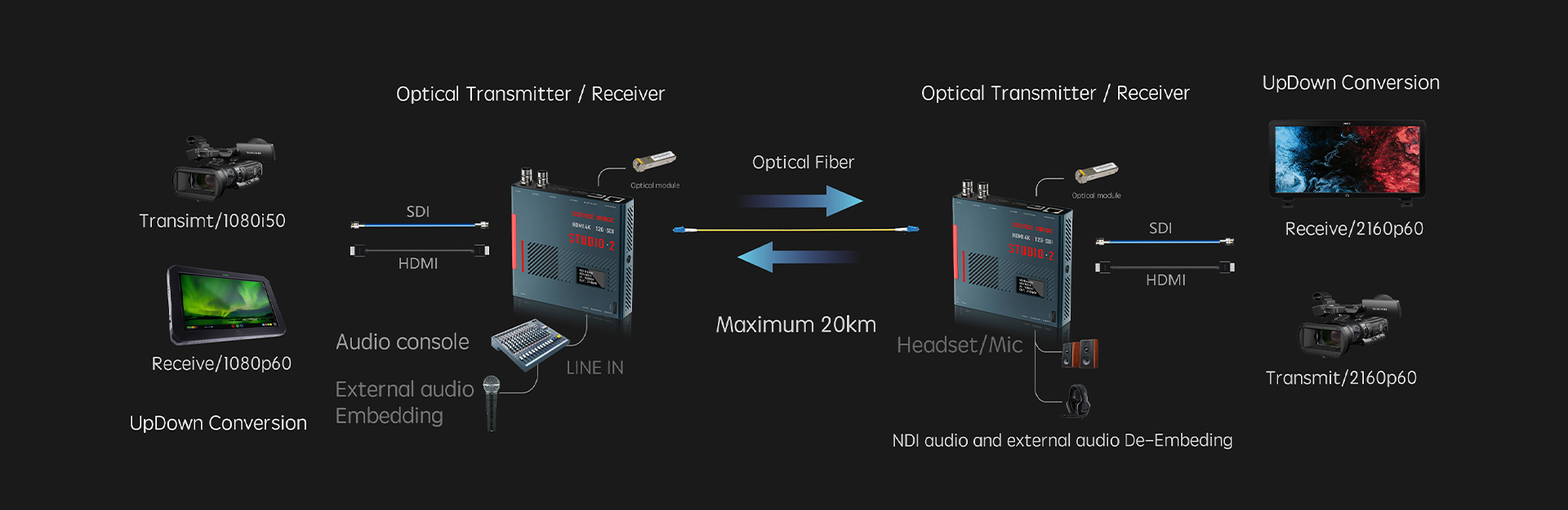

Video Conversion and Transport

Employ Studio Series for transporting video over long distances, while also encoding or decoding NDI, and changing the signal format as well.

Learn more about the Science Image fiber workflow in our explainer video below:

Bridge baseband fiber SDI and NDI



In this helpful demonstration video, Eric Pratt explains the workflow for sending SDI video over fiber using the Science Image FLOW 4K and converting it to SDI and NDI with the 4K.SH encoder/decoder.

Ready to try Science Image?
Please contact us for more information.
