ZCAM – PTZ Cameras

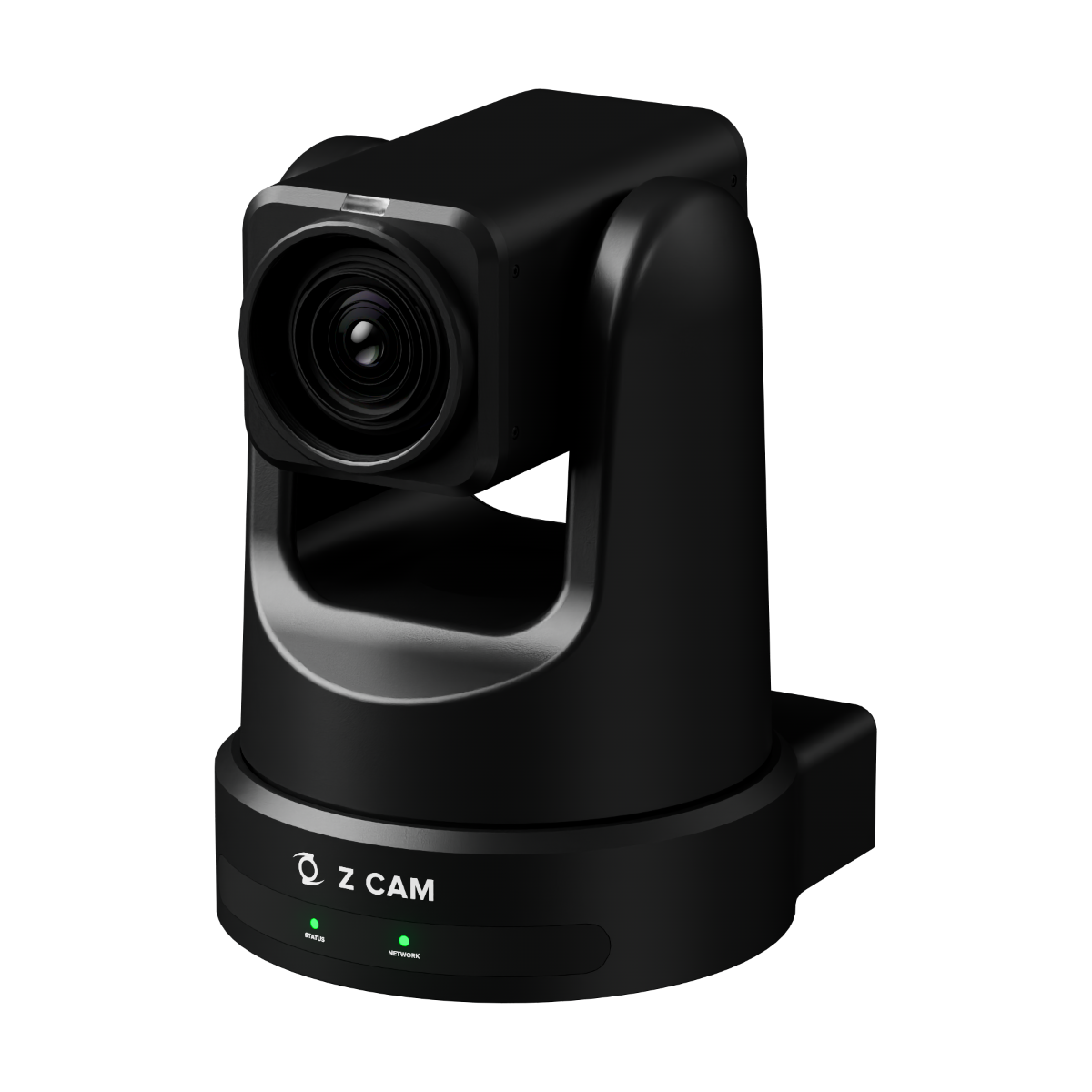

Z-CAM P2-R1 Series
Cinema-Grade PTZ.
Built for Broadcast.
The Z-CAM P2-R1 brings cinema color science and AI-powered tracking to a professional PTZ camera — delivering 4K60p, 18× optical zoom, PDAF, and NDI|HX3 in one compact, PoE-powered unit.
Everything You Need.
Nothing You Don’t.
The P2-R1 combines Z-CAM’s acclaimed cinema color science with broadcast-ready connectivity and intelligent automation — all in a single PTZ head.
4K60p with Cinema Color
Shoot up to UHD 4K at 60fps on a large 1/1.3″ CMOS sensor, inheriting the same color pipeline that powers Z-CAM’s acclaimed cinema cameras.
PDAF Autofocus
Phase Detection Autofocus locks on faster and more accurately than contrast-based systems, with face detection and continuous focus tracking built in.
AI Auto-Tracking
Real-time intelligent subject tracking runs onboard — no external computer required. Keeps your talent perfectly framed during live events and broadcasts.
18× Optical Zoom (f/1.6)
A professional-grade lens covering 36–648mm (35mm eq.) at a fast f/1.6–f/3.5 aperture. Double up with 36× digital zoom in 1080p mode.
Versatile I/O
3G-SDI, HDMI, and USB-C video outputs. Stream over IP via RTMP/RTSP/SRT. 3.5mm audio in. PoE+ or 12V DC power — your call.
Full Protocol Control
VISCA over IP and serial, FreeD for AR/VR productions, and a web-based interface for remote configuration. Integrates with any broadcast control system.
360° PTZ Movement
350° pan, 240° tilt, with movement speeds up to 180°/second. Smooth, precise positioning with programmable presets for repeatable shot recall.
Simultaneous Record + Stream
Record up to 4K60p H.265 to a Micro SD card while streaming live — no need to choose between archive quality and broadcast delivery.
Electronic Image Stabilization
Built-in EIS keeps your footage steady even when the camera experiences vibration or minor movement — critical for permanent and semi-permanent installs.
Spec Sheet
Full technical specifications for the Z-CAM P2-R1. Available in 18× and 24× zoom configurations, with and without NDI|HX3.
| Parameter | Specification |
|---|---|
| Image Sensor | 1/1.3″ CMOS |
| Max Resolution | UHD 4K (3840×2160) @ 60fps |
| Codec | H.265 / H.264 |
| Color Depth | 8-bit |
| Optical Zoom | 18× (P2-R1 18x) / 24× (P2-R1 24x) |
| Digital Zoom | 36× (in 1080p) |
| Aperture Range | f/1.6 – f/3.5 |
| Focal Length (35mm eq.) | 36 – 648mm (18×) |
| Horizontal FOV | 51° – 3.6° |
| Autofocus | PDAF + Face Detection + Tracking |
| Image Stabilization | Electronic (EIS) |
| Pan Range / Speed | 350° / Up to 180°/sec |
| Tilt Range / Speed | 240° / Up to 180°/sec |
| Video Outputs | 3G-SDI, HDMI, USB-C (webcam) |
| Network Streaming | RTMP, RTSP, SRT (IP Ethernet) |
| NDI Support | NDI|HX3 (P2-R1N models only) |
| Audio Input | 3.5mm (line/mic) |
| Control Protocols | VISCA over IP & Serial, FreeD |
| Storage | Micro SD card (up to 4K60p H.265) |
| Power | PoE+ (802.3at) or 12V DC |
| Interface | Web-based remote control UI |
Four Models.
One Platform.
Select the zoom range and connectivity that fits your workflow. NDI|HX3 models add native network media delivery for AV-over-IP environments.
P2-R1 18×
Standard — HDMI / SDI
- 18× optical zoom (36–648mm)
- 4K60p via HDMI & SDI
- RTMP / RTSP / SRT streaming
- VISCA control, FreeD support
- PoE+ or 12V DC power
P2-R1N 18×
NDI|HX3 — HDMI / SDI
- 18× optical zoom (36–648mm)
- NDI|HX3 for AV-over-IP workflows
- 4K60p via HDMI, SDI & NDI
- RTMP / RTSP / SRT streaming
- VISCA control, FreeD support
P2-R1 24×
Long Reach — HDMI / SDI
- 24× optical zoom — extended reach
- Ideal for large venues & arenas
- 4K60p via HDMI & SDI
- RTMP / RTSP / SRT streaming
- PoE+ or 12V DC power
P2-R1N 24×
Long Reach + NDI|HX3
- 24× optical zoom — extended reach
- NDI|HX3 for AV-over-IP workflows
- 4K60p via HDMI, SDI & NDI
- RTMP / RTSP / SRT streaming
- VISCA control, FreeD support
Built for the Pros
Who Run the Show.
From houses of worship to broadcast studios, the P2-R1 handles any environment with ease.
Houses of Worship
Automate multi-camera coverage with AI tracking — no camera operator needed for services and events.
Live Broadcast & News
Studio-quality 4K60p with cinema color over SDI and NDI for seamless integration into broadcast chains.
Corporate & Events
Conferences, galas, and hybrid events with reliable streaming via RTMP/SRT and PoE+ simplicity.
Education & Lecture Capture
Auto-tracking keeps presenters in frame across large lecture halls without a dedicated operator.
Sports & Arenas
The 24× zoom model delivers the reach needed for large venues and multi-camera sports productions.
Film & AR/VR Production
FreeD protocol integration makes the P2-R1 a natural fit for virtual production and augmented reality workflows.
Government & Security
High-quality PTZ coverage with robust IP control for council chambers, courtrooms, and security operations.
Streaming & Content
USB-C webcam output combined with internal recording and IP streaming makes the P2-R1 the ultimate streaming camera.
