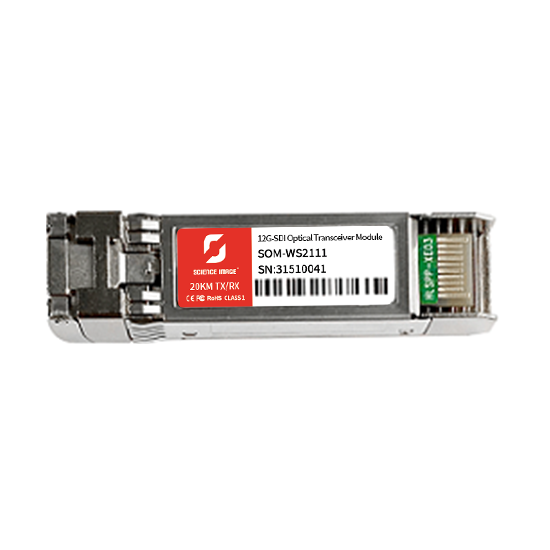

Science Image 12G-SDI Optical Transceiver-T1

The Science Image T1 is a high-performance 12G-SDI Optical Transceiver designed for the most demanding broadcast and live production environments. Engineered for seamless compatibility with the NDI Studio and FLOW series (including FLOW 4K and FLOW 2), this SFP module allows you to extend your 4K60 video signals over massive distances without latency or signal degradation.

Whether you are using the Vela Rack series or standalone converters, the T1 provides a robust fiber link that supports bi-directional transmission of SDI and HDMI signals.

Key Features:

• Massive Range: Send and receive 4K60 video up to 20km via single-mode fiber.

• High-Speed Throughput: Supports bit rates from 12Gb/s to 25Gb/s, ensuring crystal-clear 12G-SDI performance.

• Simplex LC Connection: Utilizes a standard Simplex LC connector for easy integration into existing fiber infrastructures.

• Universal Compatibility: Specifically optimized for the entire Science Image ecosystem, including NDI Studio 4K, Studio 2, and the FLOW series.

• Plug-and-Play Reliability: Hot-swappable design for rapid deployment in live event or studio settings.

Technical Specifications:

• Interface: 12G-SDI / HDMI 2.0 compatible SFP+

• Fiber Type: Singlemode

• Connector: Simplex LC

• Max Distance: 20km

• Data Rate: 12 – 25Gbps
